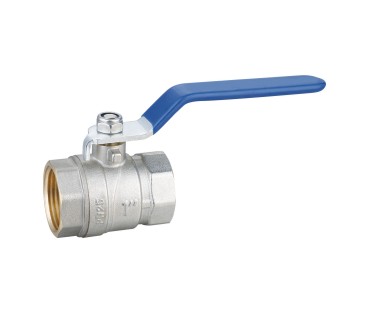

JQ-A1002
BALL VALVE(F/F)
SIZE：
1. Normal pressure: 1.0 MPa
2. Working medium: water
3. Working temperature: -0 °C & le; t & le; 90 ° C
| Size | L | L1 | H | L2 |
|---|---|---|---|---|
| 1/4"; | 39 | 9.3 | 34.5 | 80 |
| 3/8" | 39 | 9.3 | 34.5 | 80 |
| 1/2" | 45 | 10.5 | 44 | 90 |
| 3/4" | 51.5 | 11 | 47.5 | 100 |
| 1" | 59.5 | 13 | 53 | 128 |
| 11/4" | 71 | 14.8 | 65 | 134.5 |
| 11/2" | 80 | 15 | 74.5 | 165.5 |
| 2" | 95.5 | 17 | 82 | 165.5 |
| 21/2" | 120 | 19.5 | 122 | 240 |
| 3" | 141.5 | 23 | 130.5 | 240 |
| 4" | 172.5 | 28 | 143.5 | 240 |
